In 1997, we developed the fully automatic ceramic filter with independent intellectual property rights . It is the drafting unit of national industry standards for ceramic filters and ceramic filter plates.

Product Description

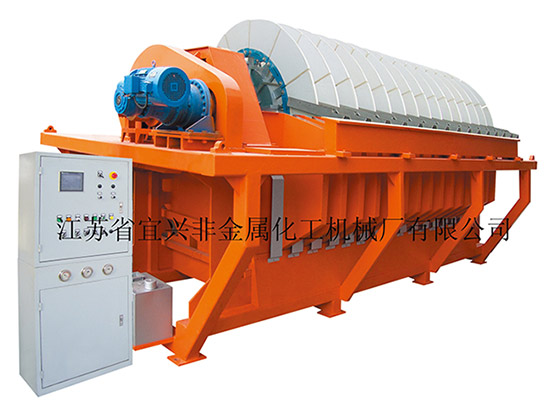

HTG automatic ceramic filter is a new type of high-efficiency, energy-saving, environmentally-friendly and high-tech material dewatering equipment, which integrates microporous ceramics, electromechanical, ultrasonic technology and automation control. It is a key project of the “Ninth Five-Year Plan” in Jiangsu Province. It has passed national-level technical appraisal and is listed as a National Innovation Fund Project and a National Torch Program project, and also has been rated as a national key new product. At present, it is a manufacturing enterprise with the  production scale and filtration area and complete varieties and specifications.

Through the technological innovation of the core technology -- ceramic filter plate, vacuum suction system and recoil cleaning system, it has broken through the key technologies of large-scale and large-scale ceramic filter. Continuously developed 80m², 100m², 120m², 144m², 180m², 204m², 240m² ceramic filter machines .

Technical Characteristics

High vacuum, good dewatering & drying performance of filter cake, clear and clean working environment, high automation, high productivity, ultra low operation and maintenance cost, high efficiency and energy saving, all-round environmental protection system, long service life of ceramic plates, wide application field

Selections of filter area

1～240m²

Model Description

型号/参数	HTG01/1	HTG06/3	HTG09/3	HTG12/3	HTG15/3	HTG18/3	HTG21/3	HTG24/3	HTG30/3	HTG45/3	HTG51/3.75	HTG45/3.75	HTG60/4	HTG80/4
过滤面积(m2)	1	6	9	12	15	18	21	24	30	45	51	45	60	80
安装功率(KW)	6	8	10	11	14	15	15	15	18	22	22	22	30	40
重量 (t)	2.2	5.6	7.9	8.5	9.2	9.9	10.2	11.2	12.8	15.6	13.1	12	18.5	24
长 (mm)	1910	3062	4170	4360	4770	4780	5375	5453	6318	7998	6300	6100	8054	9562
宽 (mm)	1900	3025	2935	3200	3200	3200	3200	3200	3400	3410	3020	3020	3150	3510
高 (mm)	1780	2750	2750	2750	2750	2750	2750	2750	2750	2750	2720	2720	3270	3233
