Inorganic ceramic membrane features:
inorganic ceramic membraneWith good chemical stability, acid and organic solvents, high temperature, anti-microbial ability,high precision separation, mechanical strength, easy regeneration, and long service life.Can be widely used in petroleum, chemical, metallurgy, coal, food, pharmaceutical, environmental protection industry, filtration, purification, sterilization, cleaning process.
Inorganic ceramic membrane's categories:

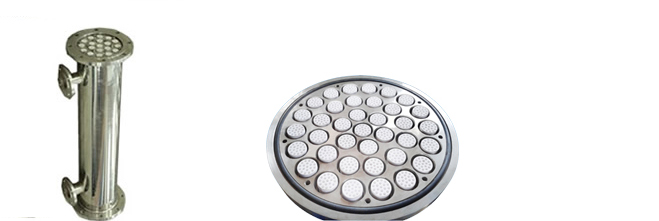

According to the different channels, it can be mainly classfied into single channel and multichannel.
Inorganic ceramic membrane indicators:
Support body material | α-Al2O3 | Membrane material | Al2O3 ZrO | ||
The average membrane pore size | 0.02 0.05 0.1 0.2 0.5 1.5 | ||||
Standard length | 1020 | PH | 0-14 | ||
Model | Geometric size(mm) | Number of channels | Length | Membrane area m2 |
1-8 |
| 1 | 1020 | 0.025 |
1-7 |
| 7 | 1020 | 0.13 |
1-19 |
| 19 | 1020 | 0.24 |
1-37 |
| 37 | 1020 | 0.45 |
