Properties
Seal: Non-standard Mechanical seal or Dynamic seal .Suitable medium: concentration 75% & less sulfuric acid, 50% & less nitric acid, all concentrations of hydrochloric acid, caustic soda, containing no solid granules or media that will be cured quickly. Technical Parameters: Operating temperature -20℃~90℃(we can use special materials for special requirements, can reach to 120℃), Diameter of inlet 32mm~100mm, Flow 5~100m3/h, Lift 50m & less.
Application
the circulation transportation of weak acid, hydrochloric acid and diluted nitric acid in phosphate compound fertilizer industry, sulphuric acid industry, environmental protection sewage, industrial wastewater treatment and so on.

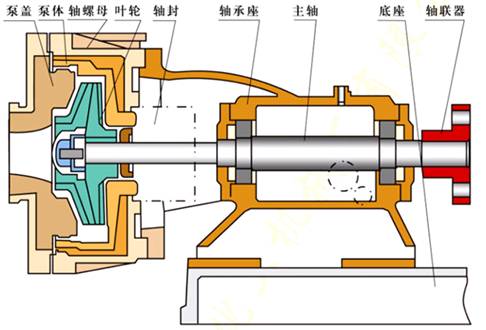

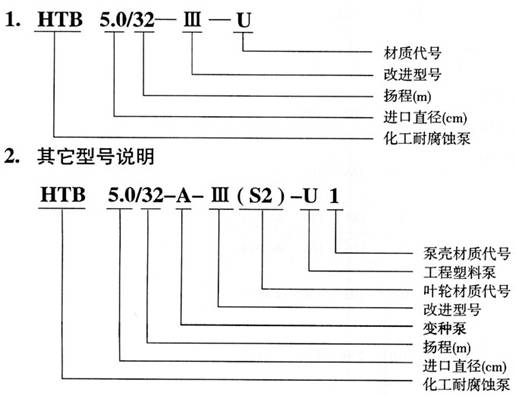

Model
Codes of impeller materials
| UHMWPE | Modified rubber | Fluoro-plastic alloy | PVDF | Chlorinated polyether | Stainless Steel | ||
Anticorrosive & wear-resisting | Heat-resisting & wear-resisting | Anticorrosive | ||||||
Code | S | S1 | S3 | S2 | S4 | S5 | S6 | G |
Note | not for U type pump |
Codes of pump materials
| UHMWPE | Modified rubber | Fluoro-plastic alloy | PVDF | Chlorinated polyether | Stainless Steel | ||
Anticorrosive & wear-resisting | Heat-resisting & wear-resisting | Anticorrosive | ||||||
Code | U | U1 | U3 | U 2 | U 4 | U 5 | U 6 | G |
Note |
Parameters \ Model | Specification of impeller | Rated Rev. 2900 r/Min. | Rated Rev. 1450 r/Min. | NPSH | Weight | ||||||
Flow Q | Lift H | Power of motor N | Efficiency η % | Flow Q | Lift H | Power of motor N | Efficiency η % | ||||
HTB3.2/20 | Standard | 8 | 22 | 2.2 | 45 | 4 | 5.5 | 1.1 | 40 | 4 | 60 |
12.5 | 20 | 6.25 | 5 | ||||||||
16 | 15 | 8 | 3 | ||||||||
HTB5.0/32 | Standard | 20 | 33 | 5.5 | 51.5 | 10 | 8.2 | 1.5 | 45 | 5 | 110 |
25 | 32 | 12 | 8 | ||||||||
30 | 30 | 15 | 7.5 | ||||||||
HTB10.0/32-168 | Standard | 50 | 34 | 15 | 45 | 25 | 8.3 | 3 | 40 | 6 | 230 |
60 | 32 | 30 | 8 | ||||||||
70 | 30 | 35 | 7 | ||||||||
HTB10.0/50 | Standard | 70 | 52 | 30 | 61.5 | 35 | 13 | 5.5 | 56 | 5.5 | 230 |
80 | 50 | 40 | 12.5 | ||||||||
90 | 48 | 45 | 12 | ||||||||
HTB10.0/40 | Standard | 90 | 43 | 30 | 60 | 45 | 10.5 | 5.5 | 55 | 5.7 | 250 |
100 | 40 | 50 | 10 | ||||||||
110 | 38 | 55 | 9 | ||||||||
HTB10.0/15-M | Standard | 35 | 15.5 | 5.5 | 57 | 3 | 230 | ||||
40 | 15 | ||||||||||
45 | 14 |

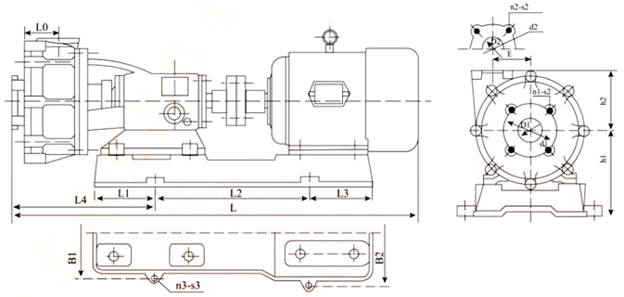

Pump shape and Installation size
Installation size
Model | D1 | D2 | d1 | d2 | B1 | B2 | n1-s2 | n2-s2 | n3-s3 | E | h1 | h2 | L1 | L2 | L3 | L4 | L | Weight(except motor) kg |
HTB3.2/20-Ⅲ-U | 32 | 25 | 100 | 85 | 260 | 32 | 4-M10 | 4-M10 | 4-φ18 | 81 | 160 | 110 | 97 | 336 | 97 | 308 | 804 | 60 |
HTB5.0/32-Ⅲ-U | 50 | 40 | 125 | 110 | 320 | 50 | 4-M12 | 4-M12 | 4-φ20 | 98 | 212 | 150 | 160 | 400 | 160 | 320 | 992 | 110 |
HTB10.0/50-Ⅲ-U | 100 | 80 | 210 | 185 | 385 | 100 | 4-φ18 | 4-φ18 | 4-φ20 | 140 | 335 | 200 | 188 | 665 | 207 | 380 | 1398 | 230 |
HTB10.0/15-M1-Ⅲ-U | 100 | 80 | 210 | 185 | 385 | 100 | 4-φ18 | 4-φ18 | 4-φ20 | 140 | 335 | 200 | 180 | 504 | 180 | 380 | 1106 | 230 |
HTB10.0/32-168-Ⅲ-U | 100 | 80 | 210 | 185 | 385 | 100 | 4-φ18 | 4-φ18 | 4-φ20 | 140 | 335 | 200 | 180 | 534 | 206 | 380 | 1236 | 230 |
HTB10.0/40-Ⅲ-U | 100 | 80 | 210 | 185 | 385 | 100 | 8-φ18 | 4-φ18 | 4-φ20 | 136 | 335 | 200 | 188 | 665 | 207 | 405 | 1423 | 250 |
