Properties
Seal: Mechanical seal , Packing seal , Oil seal , Dynamic seal .
Suitable medium: Corrosive, abrasive media. except HF and hot caustic soda, media with suspension particles. Technical Parameters: Operating temperature < 100℃, Diameter of inlet 50mm~200mm,
Flow 5~400m3/h, Lift 50m & less.
Application
Non-ferrous metal smelting, non-mineral processing, environmental engineering, sulfuric acid, phosphate, chlorinate alkali, citric acid, water treatment, chemical fiber, electroplating, steel industry etc.

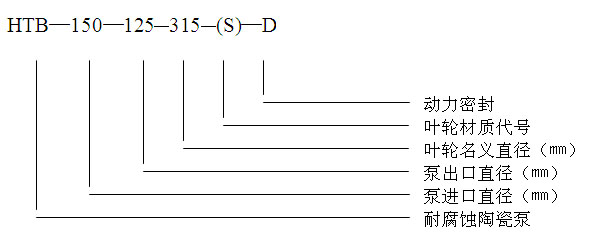

Codes of impeller materials
Materials | ceramic | UHMWPE | Modified rubber | Fluoro-plastic alloy | PVDF | Chlorinated polyether | Stainless Steel | ||
Anticorrosive & wear-resisting | Heat-resisting & wear-resisting | Anticorrosive | |||||||
Code | without note | S | S1 | S3 | S2 | S4 | S5 | S6 | G |

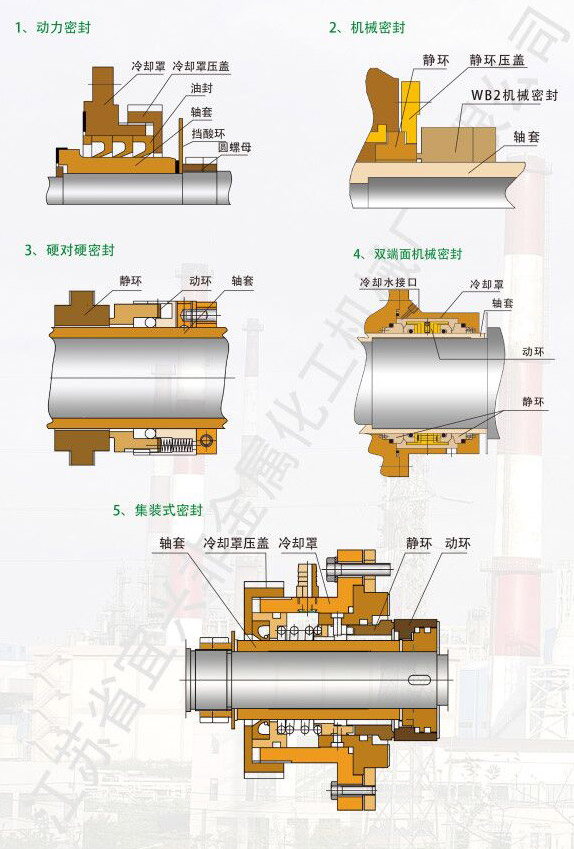

Seal type | Oil seal | Packing seal | Mechanical seal | Dynamic seal of Auxiliary impeller | ||||||
WB2 | Hard to hard seal | Double End seal | Centralized | Packing seal | Oil seal | Oil seal | Mechanical seal | |||
Code | Y1 | T | J | Y2 | Y3 | Y4 | D | D1 | D2 | D3 |
Note | cooling water | with clear liquid pump | cooling water | cooling water | cooling water | cooling water | without cooling water | cooling water |
Parameter details
Parameters \ Model | 1450 r/Min. | 2900 r/Min. | Efficiency η | ||||||||||||
Flow Q | Lift H | Motor power N | NPSH | Flow Q | Lift H | Motor power N | NPSH | Weight | |||||||
HTB50 | 3.75 | 5.5 | 0.55 | 4.0 | 7.5 | 22 | 2.2 | 4.0 | 70 | 40 | |||||
6.3 | 5.0 | 12.5 | 20 | ||||||||||||
7.5 | 4.5 | 15.0 | 18 | ||||||||||||
HTB50 | 3.75 | 8.75 | 0.75 | 4.5 | 7.5 | 35 | 4.0 | 4.5 | 90 | 35 | |||||
6.3 | 8.0 | 12.5 | 32 | ||||||||||||
7.5 | 7.0 | 15.0 | 30 | ||||||||||||
HTB50 | 3.75 | 12.9 | 1.5 | 4.5 | 7.5 | 51.8 | 7.5 | 4.5 | 270 | 34 | |||||
6.2 | 12.5 | 12.5 | 50 | ||||||||||||
7.5 | 12 | 15.0 | 48 | ||||||||||||
HTB65 | 7.5 | 8.88 | 0.75 | 4.5 | 15 | 35.5 | 5.5 | 4.5 | 110 | 52 | |||||
12.5 | 8.0 | 25 | 32 | ||||||||||||
15.0 | 7.0 | 30 | 29 | ||||||||||||
HTB65 | 7.5 | 13.3 | 1.1 | 5.0 | 15 | 52 | 15 | 5.0 | 250 | 40 | |||||
12.5 | 12.5 | 25 | 50 | ||||||||||||
15 | 12 | 30 | 48 | ||||||||||||
HTB80 | 15 | 8.75 | 1.5 | 4.5 | 30 | 35 | 11 | 4.5 | 120 | 58 | |||||
25 | 8 | 50 | 32 | ||||||||||||
30 | 7.13 | 60 | 29 | ||||||||||||
HTB80 | 15 | 14 | 2.2 | 5.2 | 30 | 57 | 22 | 5.2 | 310 | 52 | |||||
25 | 12.5 | 50 | 50 | ||||||||||||
30 | 11.5 | 60 | 46 | ||||||||||||
Parameters \ Model | 1450 r/Min. | Efficiency η | |||||||||||||
Flow Q | Lift H | Power of motor N | NPSH | Weight | |||||||||||
HTB125 | 60 | 37 | 22 | 5.5 | 730 | 54 | |||||||||
100 | 32 | ||||||||||||||
120 | 48 | ||||||||||||||
HTB150 | 120 | 38 | 37 | 5.5 | 750 | 65 | |||||||||
200 | 32 | ||||||||||||||
240 | 28 | ||||||||||||||
HTB200 | 280 | 35 | 55 | 5.5 | 760 | 68 | |||||||||
315 | 32 | ||||||||||||||
360 | 30 | ||||||||||||||
HTB200 | 320 | 54 | 110 | 5.5 | 1600 | 66 | |||||||||

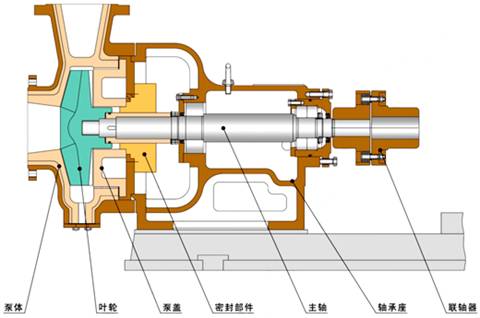

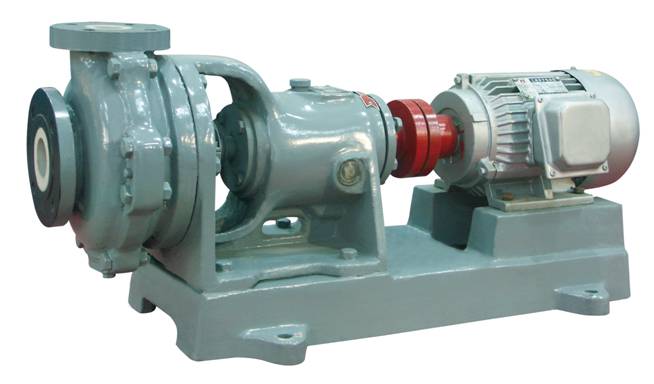

Pump shape and Installation size

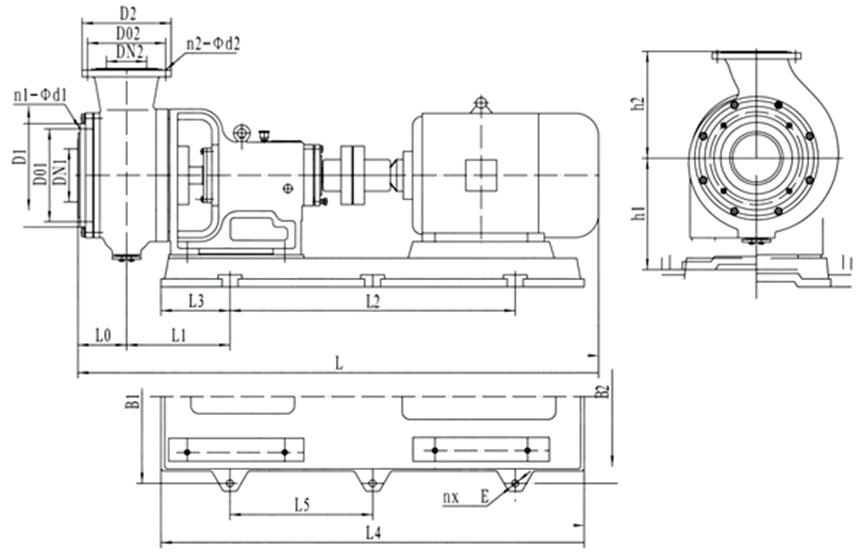

Installation size
Model | Power | Motor | Installation size | |||||||||||||||||||
L | L0 | L1 | L2 | L3 | L4 | B1 | B2 | h1 | h2 | L5 | DN1 | D01 | D1 | n1-φd1 | DN2 | D02 | D2 | n2-φd2 | n-φE | |||
HTB50-32-125 | 2.2 | Y90L-2 | 830 | 80 | 160 | 460 | 100 | 660 | 300 | 300 | 220 | 145 | 0 | 50 | 125 | 160 | 4-M16 | 32 | 100 | 135 | 4-M16 | 4-φ20 |
3 | Y100L-2 | 875 | ||||||||||||||||||||
HTB50-32-160 | 4 | Y112M-2 | 995 | 90 | 240 | 455 | 180 | 815 | 354 | 354 | 265 | 170 | 0 | 50 | 125 | 160 | 4-M16 | 32 | 110 | 145 | 4-M16 | 4-φ20 |
5.5 | Y132S1-2 | 1070 | ||||||||||||||||||||
HTB65-50-160 | 5.5 | Y132S1-2 | 1070 | 90 | 240 | 455 | 180 | 815 | 354 | 354 | 265 | 180 | 0 | 65 | 145 | 180 | 4-M16 | 50 | 125 | 160 | 4-M16 | 4-φ20 |
7.5 | Y132S2-2 | |||||||||||||||||||||
HTB80-65-160 | 11 | Y160M1-2 | 1205 | 100 | 250 | 520 | 180 | 880 | 390 | 390 | 265 | 180 | 0 | 80 | 160 | 195 | 4-M16 | 65 | 145 | 180 | 4-M16 | 4-φ20 |
15 | Y160M2-2 | |||||||||||||||||||||
HTB50-32-200 | 7.5 | Y132S2-2 | 1201 | 94 | 253 | 600 | 180 | 975 | 400 | 355 | 290 | 190 | 0 | 50 | 145 | 180 | 4-M16 | 32 | 125 | 160 | 4-M16 | 4-φ20 |
HTB65-40-200 | 15 | Y160M2-2 | 1341 | 96 | 350 | 640 | 230 | 1100 | 400 | 400 | 290 | 210 | 0 | 65 | 160 | 195 | 4-M16 | 40 | 125 | 160 | 4-M16 | 4-φ20 |
18.5 | Y160L-2 | 1386 | ||||||||||||||||||||
HTB80-50-200 | 22 | Y180M-2 | 1415 | 100 | 247 | 755 | 185 | 1125 | 460 | 460 | 300 | 220 | 0 | 80 | 160 | 195 | 4-M16 | 50 | 145 | 180 | 4-M16 | 4-φ20 |
HTB125-100-315 | 22 | Y180L-4 | 1710 | 150 | 350 | 870 | 250 | 1370 | 610 | 610 | 420 | 355 | 0 | 125 | 240 | 280 | 8-M20 | 100 | 240 | 280 | 8-M20 | 4-φ26 |
30 | Y200L-4 | 1775 | ||||||||||||||||||||
HTB150-125-315 | 37 | Y225S-4 | 1835 | 160 | 388 | 905 | 260 | 1425 | 610 | 610 | 420 | 365 | 0 | 150 | 270 | 310 | 8-M20 | 125 | 240 | 280 | 8-M20 | 4-φ26 |
45 | Y225M-4 | 1860 | ||||||||||||||||||||
HTB200-150-315 | 55 | Y250M-4 | 1965 | 179 | 414 | 990 | 280 | 1550 | 655 | 655 | 420 | 400 | 0 | 200 | 350 | 390 | 8-M20 | 150 | 295 | 335 | 8-M20 | 4-φ26 |
HTB200-150-400 | 110 | Y315S-4 | 2630 | 200 | 125 | 1800 | 260 | 2400 | 850 | 850 | 560 | 450 | 900 | 200 | 350 | 390 | 12-M20 | 150 | 295 | 335 | 8-M20 | 6-φ28 |
