Air quantity : 1500～4000m3/h
Wind pressure: 360～2000Pa
Uses
The product is suitable for the transport or extraction of corrosive gases.

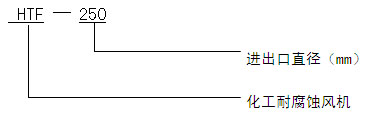

Model
REV. | No. | Static Pressure | Air quantity | Power of motor | Weight(except motor) |
2500 | 1 | 55 | 3800 | 5.5 | 250 |
2 | 80 | 3400 | |||
3 | 100 | 3100 | |||
4 | 110 | 2850 | |||
5 | 120 | 2600 | 4.0 | ||
6 | 130 | 2350 | |||
7 | 140 | 2050 | |||
8 | 155 | 1550 | |||
2000 | 1 | 25 | 3400 | 3.0 | |
2 | 40 | 2950 | |||
3 | 55 | 2700 | |||
4 | 65 | 2500 | |||
5 | 75 | 2250 | |||
6 | 85 | 1950 | |||
7 | 95 | 1500 |
