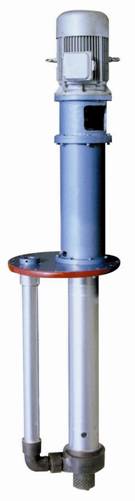

HTB-Y anticorrosive wear-resisting engineering plastic submerged pump series

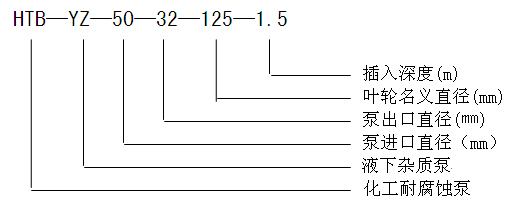

Model

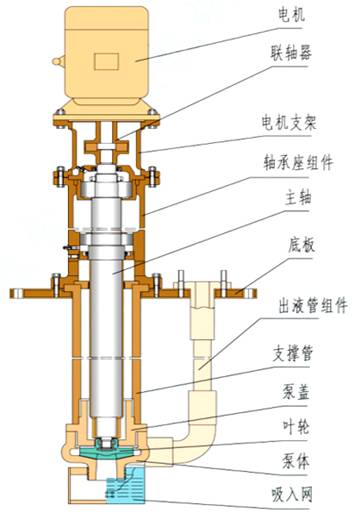

Structure type

Parameter details

Parameters \ Model

Specification of impeller

Rated Rev. 2900 r/Min.

Rated Rev. 1450 r/Min.



Weight
(kg)

Flow Q
(m³/h)

Lift H
(m)

Power of motor N
(Kw)

Flow Q
(m³/h)

Lift H
(m)

Power of motor N
(Kw)



Y50-32-125

Standard

8

22



3





12.5

20




16

16






A

5

15



2.2




9

12




12

8






Y50-32-160

Standard

8

33



5.5





12.5

32




16

29








Y65-50-160

Standard

20

33.5



7.5





25

32




30

29






A

10

25



5.5




15

23.5




20

21.5






Y80-65-160

Standard

40

34



11





50

32




60

28.5






Y65-40-200

Standard

15

51.5



15





25

50




30

46






Y80-50-200

Standard

40

53



22





50

50




60

45




Y100-80-160


100

32

22







Y150-125-315

Standard




130

35



45




200

32



240

28



A




85

28.5



30




120

26



150

25

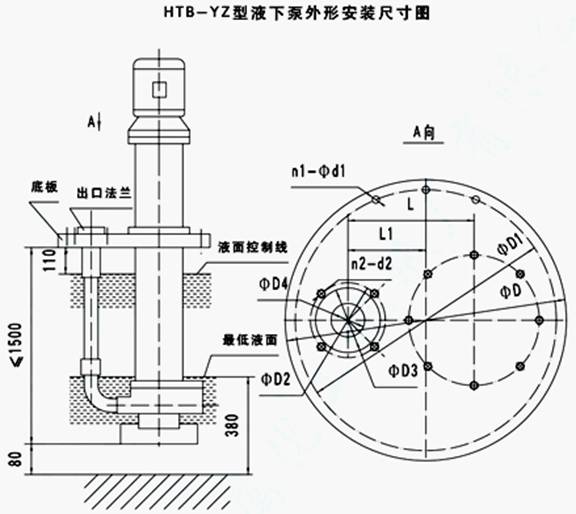

 Pump shape and Installation size

Installation size


Model

L1

L2

底板

出口法兰

D

D1

n1-¢d1

D2

D3

D4

n2-d2

YZ50-32-125

162

225

580

540

12-¢18

100

78

32

4-M12

YZ50-32-160

210

330



700



650



16-¢18

YZ65-50-160

200

320

125

105

50

4-M16

YZ65-40-200

220

340

110

85

40

4-M16

YZ80-65-160

220

340

145

125

65

4-M16

YZ80-50-200

220

340

125

105

50

4-M16

YZ100-80-160



160

132

80

4-M16

YZ150-125-315

310

525




240

210

125

8-M16
